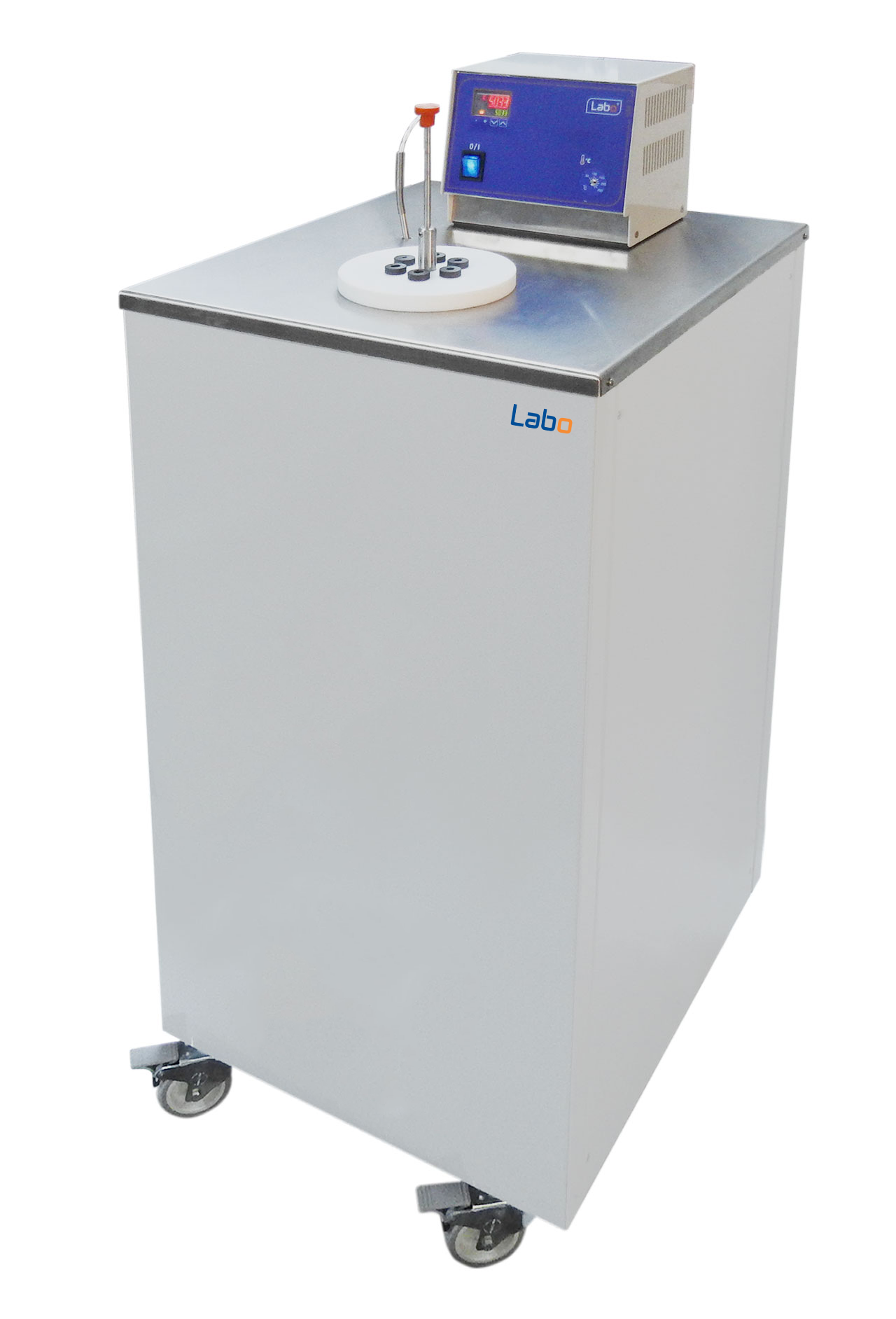

Calibration Baths

Special Purpose Devices

Gaining the right to a measuring instrument capable of measuring or testing the ability of the process is called calibration. For doing temperature calibration is used liquid calibration baths and it's the most practiced method.

> Reaching the target temperature in a very short time
> Holding the liquid temperature stable very sensitively
> Easy to do measurements with all temperature sensors

Labo's calibration baths are developed for these features. The products which are universal models are appropriate to all temperature calibration measurements and correspond all needs of their users.

Kind of Measured Sensors;

Pt100, Pt500, Pt1000, ptc, ntc, k, j, t, e, l, u, n, r, s, b sensors, infrared thermo sensors, digital and analog thermometers, glass thermometers and many of temperature sensors' calibration can be done easily.


REQUEST A QUOTE
Calibration Baths
Calibration Baths
COMMON FEATURES
Display Type Digital
Display Resolution 0,01 °C (existing for CALX models)
Temp. Check System PT-100 (0,01 °C precision)
Over Temp. Alert System Existing
Bath Material Stainless Steel
Easy Drain System Existing
Low Liquid Level Alert System Existing for CAL models
Power Requirement 220-240 V / 50-60 Hz
Calibration Baths – Special Purpose Devices
Products Temp Ragne (˚C) Bath Capacity (LT) Bath Opening Depth (MM) Temrarature Stability (˚C) Heating Capacity (kW) Cooling Capacity (20 ˚C/kW) Circulations Type Pump Capacity (LT/MIN) Dimensions (MM) Sample Quantity
CAL-141 Infrared Calibrator -40 / 100 14 Ø150/250 ±0,01 2,2 0,49 Nur intern 21 l / min. 0,6 bar 310 x 430 x 790 7
CAL-60 30 / 200 9 130x170/200 ±0,01 2,2 - Internal 21 l / min. 0,6 bar 310x430x420 8
CAL-140 -40 / 100 9 130x170/160 ±0,01 2,2 0,49 Internal 21 l / min. 0,6 bar 310x430x620 0
CAL-160 -60 / 100 9 140x145/160 ±0,01 2,2 0,45 Internal 21 l / min. 0,6 bar 490x650x900 0
CAL-180 -80 / 100 9 140x145/160 ±0,01 2,2 0,52 Internal 21 l / min. 0,6 bar 490x650x900 0
CALX-60 30 / 250 9 Ø 100/500 ±0,01 2,2 - Internal 21 l / min. 0,6 bar 450x500x1260 0
CALX-100 0 / 100 9 Ø 100/500 ±0,01 2,2 0,35 Internal 21 l / min. 0,6 bar 450x500x1260 0
CALX-140 -40 / 100 9 Ø 100/500 ±0,01 2,2 0,40 Internal 21 l / min. 0,6 bar 450x500x1260 0
CALX-180 -80 / 100 9 Ø 100/500 ±0,01 2,2 0,52 Internal 21 l / min. 0,6 bar 450x500x1260 0
